Model

XCX-603Z

Cable size

4 – 30 mm² (inner conductor number ≤ 6)

Cutting length

1 – 99999.99 mm

Cutting tolerance

0.002 * L (L = cutting length)

Stripping length (side I)

Cable jacket: 10 – 120 mm Conductor: 1 – 120 mm

Stripping length (side II)

Cable jacket: 10 – 120 mm Conductor: 1 – 80 mm

Maximum guide tube diameter

16 mm

Productivity

600 pcs./h

400 pcs./h (multi-conductor cable)

Blade material

Imported high speed steel

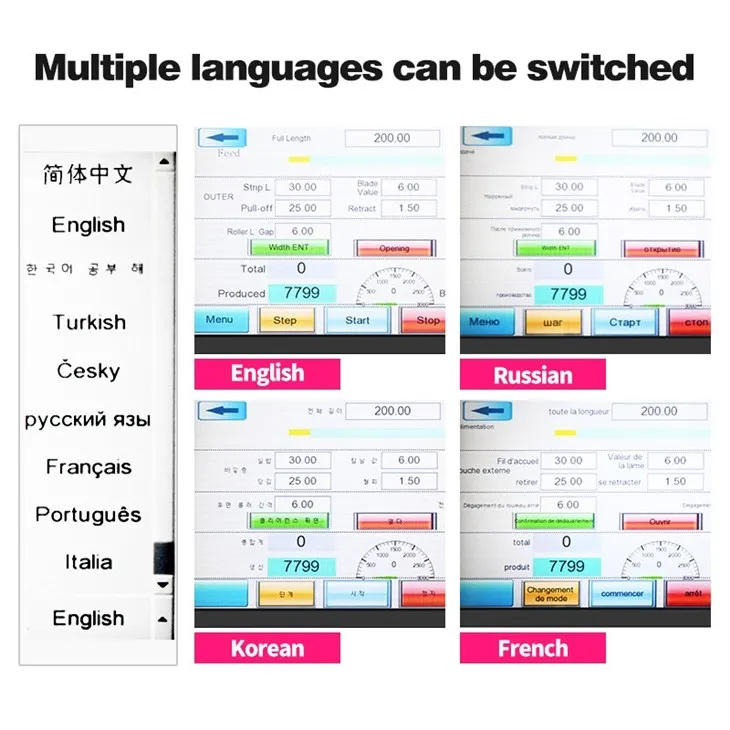

Display mode

7-inch touch screen

Driving mode

16-wheel driving, servo tool holder

Feeding mode

By belts

Dimension

590 * 460 * 510 mm

Weight

100 kg

Remarks

Special application can be customized by sending samples
